Structural warranty
10-year structural warranty against frame failure and weld defects.
Used
Tipping chassis / ÖzgülAsk about this product
2022 Özgül F Container Chassis
CATALOG REFERENCE PRICE$26,878AUD · Free delivery, continental US · tax applied at checkout
- Product reference
- BW778E8F97
Available to orderAsk Northern to confirm the build or dispatch window for your destination.
Condition & inclusionsUsed. Confirm the supplied unit and its fit-out before payment.
Delivery quoted for your locationShare your delivery address, access route and unloading requirements.
Discharging without unloading. The recorded specification includes registration date: 2022; colour: Black; gross vehicle weight (gvw): 39000 kg; max load capacity: 39000 kg; amount of axles: 3.
Container Size(s)20ft
Amount of Axles3
Checkout submits an order request. Bank-transfer details are supplied after your order is reviewed. No payment is taken online.
Free delivery, continental US Specifications confirmed before payment
Tipping chassis / BW778E8F97
About this product.
Discharging without unloading. The recorded specification includes registration date: 2022; colour: Black; gross vehicle weight (gvw): 39000 kg; max load capacity: 39000 kg; amount of axles: 3.
A tipping chassis empties a container in place, which suits bulk work but needs level ground, overhead clearance and a container rated for tipping. Confirm the hydraulic arrangement and how it is driven from the prime mover before assuming it suits your fleet.
Use the technical information below to compare this selection with the alternatives in the tipping chassis collection. The listed condition is used. Include the intended use, the delivery address and any layout or service requirements when discussing this unit with Northern. A clear brief helps separate what is supplied from the site works and connections handled locally.
Configuration highlights
- Registration Date: 2022
- Colour: Black
- Gross Vehicle Weight (GVW): 39000 kg
- Max load capacity: 39000 kg
- Amount of Axles: 3
- Twistlocks: Yes
- Container Size(s): 20ft
- Material chassis: Steel
Technical specifications.
Product2022 Özgül F Container Chassis
Product referenceBW778E8F97
CategoryTipping chassis
ConditionUsed
Registration Date2022
ColourBlack
Gross Vehicle Weight (GVW)39000 kg
Max load capacity39000 kg
Amount of Axles3
TwistlocksYes
Container Size(s)20ft
Material chassisSteel
UndercarriageWheeled
Vehicle Length (cm)780 cm
Vehicle Width (cm)245 cm
Vehicle Height (cm)280 cm
Inner length600 cm
Type of suspension axle 1Air
Brakes Axle 1Disc
Axle 1 typeLift
Type of tyresSingle
Tyre size Axle 1385/65R22.5
Axle brandSAF 9 Ton CD (Off-Road)
Kingpin sizeSmall
ConfigurationTipping 2xLift Axle
Prepare for your delivery.

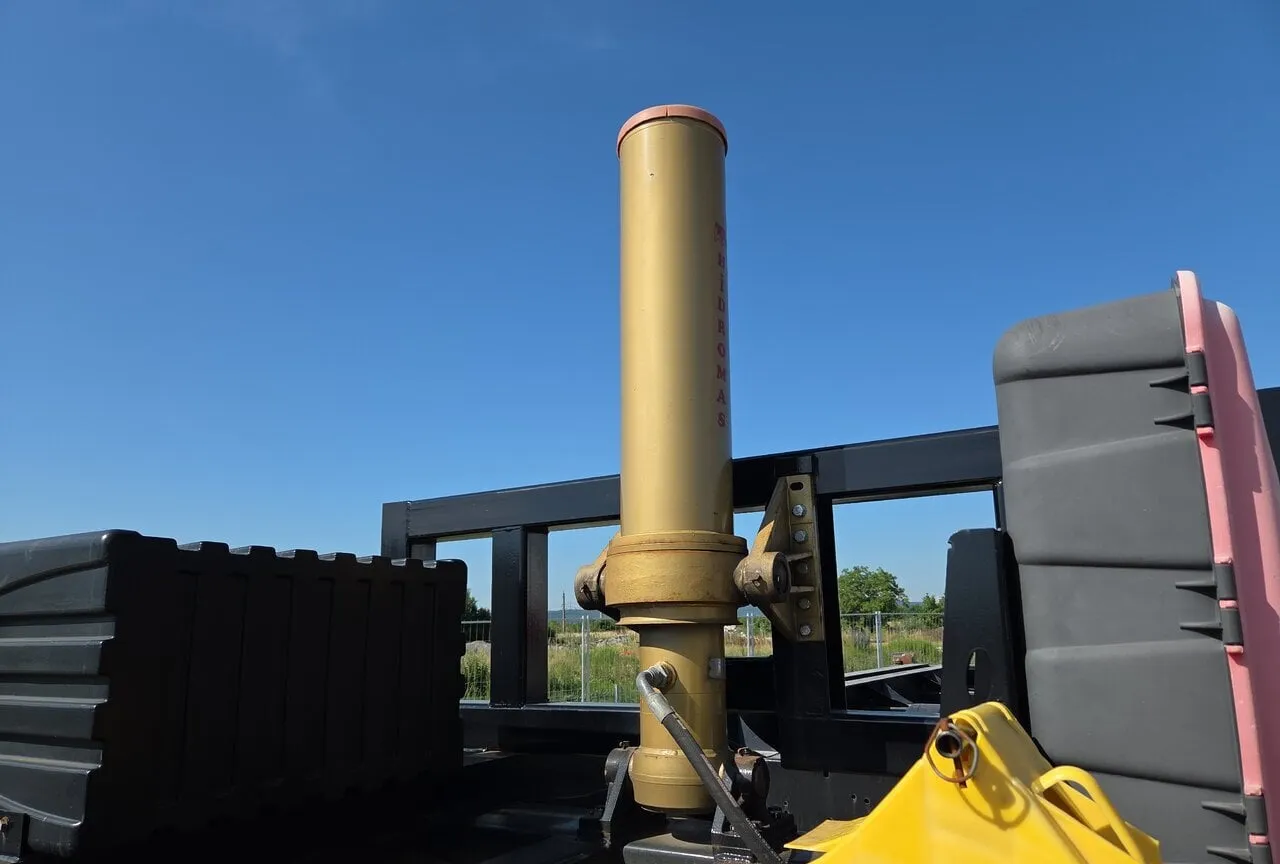

Tipping gear
Confirm the hydraulic arrangement, how it is powered from the prime mover, the tipping angle and the condition of the rams and hoses.
Stability when discharging
Tipping a loaded container needs level, firm ground and clear height. Confirm the stabilising arrangement and the clearance the unit requires.
Container compatibility
Confirm the container lengths and locking arrangement the tipping frame accepts, and whether the container itself must be a tipping-rated unit.
Delivery for this unit.
This product is available to order. Provide the delivery address and contact details so Northern can confirm the build or dispatch window and arrange freight. Standard handling for stocked units is 1–3 business daysafter order confirmation and cleared funds, followed by estimated transit of 3–7 business days. Most standard orders therefore arrive in approximately 4–10 business days.
Share the gate width, access route, ground conditions, overhead restrictions and final placement location. Agree on the unloading method and who supplies any crane, forklift or site work before dispatch.
Inspect the shipment on arrival, match it to the order documentation and photograph any visible damage or discrepancy. Keep the delivery paperwork and contact Northern promptly about any issue, and no later than within 24 hours of delivery for a freight-damage claim.
Shipping policyManufacturing warranty
1-year manufacturing warranty covering workmanship and material defects.
Paint warranty
2-year paint warranty against peeling and excessive fading.
Fit-out warranty
Installed electrical, plumbing and appliance equipment is covered under its applicable manufacturer warranty. Coverage and service requirements are provided for the components included with your order.
For warranty support, email sales@northerncontainersllc.com with your order reference, photographs and a description of the issue. Read our warranty policy →
CUSTOMER EXPERIENCES
Reviews for this product.
2022 Özgül F Container Chassis
No reviews yetBe the first to share your experience
Tell other buyers about your unit.
Own this product? Share how it fits your project, the unit’s condition and your delivery or installation experience.
Your product questions.
Is this product in stock?
Yes. Northern has confirmed this product is in stock and ready to ship. Standard handling is 1–3 business days after order confirmation and cleared funds, followed by estimated carrier transit of 3–7 business days.
What technical details are available?
Size: 20ft. Axles: 3. Suspension: Air. Condition: Used. The Specifications tab contains the available product record.
What should I prepare at the delivery site?
Confirm the hydraulic arrangement, how it is powered from the prime mover, the tipping angle and the condition of the rams and hoses. Tipping a loaded container needs level, firm ground and clear height. Confirm the stabilising arrangement and the clearance the unit requires.
What does the price include?
The displayed amount is a catalog reference price in AUD. Delivery, applicable tax and any requested installation, assembly or additional equipment are itemized in the written quote.
How do I order this product?
Use Add to cart to include the unit in your order request, or use Get quote to discuss the selected configuration. Checkout collects your contact and delivery details and provides a request reference.
Which warranty applies?
Northern provides a 10-year structural warranty, a 1-year manufacturing warranty and a 2-year paint warranty for the units it supplies. Installed fit-out equipment follows its applicable component warranty. See the Warranty tab for coverage and exclusions.
